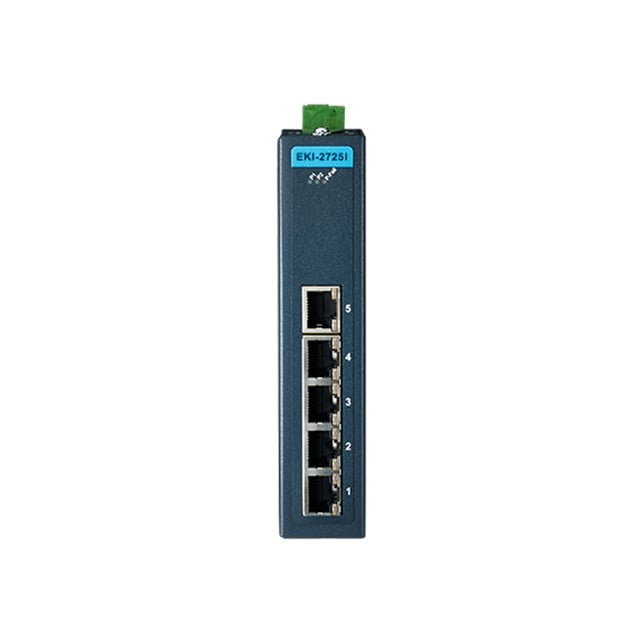

Jual Advantech ETHERNET DEVICE, 5-port Ind. Unmanaged GbE Switch W/T (EKI-2725I-CE)

Advantech ETHERNET DEVICE, 5-port Ind. Unmanaged GbE Switch W/T (EKI-2725I-CE)

Category	Attribute	Value
Power	Power Connector Type	6-pin removable screw terminal
	Power Consumption	Max 2.5W
	Power Input (AC)	–
	Power Input (Battery)	–
	Power Input (DC)	12 ~ 48 VDC
	Power Input (PoE)	–
	Redundant Dual Inputs	Yes
Protection	Overload Current	Present
Protection	Reverse Polarity	Present
Environment	Temperature (Max. Operating)	75°C (167°F)
	Temperature (Min. Operating)	-40°C (-40°F)
	Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
	Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)
Mechanism	Dimensions (W x H x D)	30 x 140 x 95 mm (1.18′ x 5.51′ x 3.74 in.)
	Enclosure (Plastic)	–
	IP Rating	IP30
	Mounting (DIN-rail)	Yes
	Mounting (Panel)	–
	Mounting (Pole Mount)	–
	Mounting (Rack Mount)	–
	Mounting (Stack)	–
	Mounting (Wall)	Yes
Ethernet Communication	Fiber Port Connector Type	–
	Fiber Port Interface	–
	Fiber Port Number	–
	Fiber Transmission Distance	–
	Fiber Transmission Speed	–
	RJ-45 Port Connector Type	RJ-45
	RJ-45 Port Number	5
	RJ-45 Transmission Distance	100 m
	RJ-45 Transmission Speed	10/100/1000 Mbps
Certification	EMI	CE, FCC Class A
	EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
	Safety	UL 60950-1
Warranty	Warranty Period	5 years
PoE Information	PoE Budget	–
	PoE Output	–
	PoE Port Number	–
	Support PoE	No

Advantech ETHERNET DEVICE, 5-port Ind. Unmanaged GbE Switch W/T (EKI-2725I-CE)
